DALMA EREZYON JMNC32A P75
DALMA EREZYON JMNC32A P75

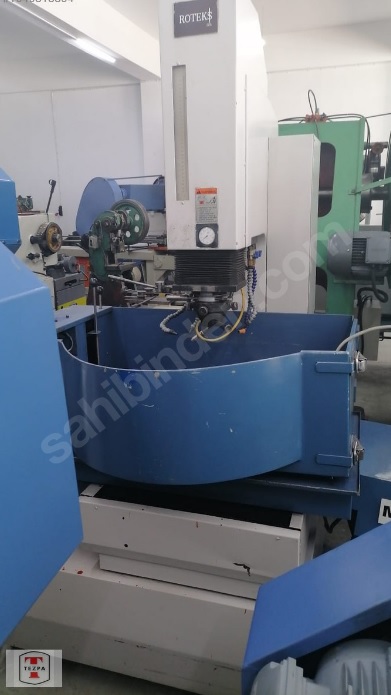

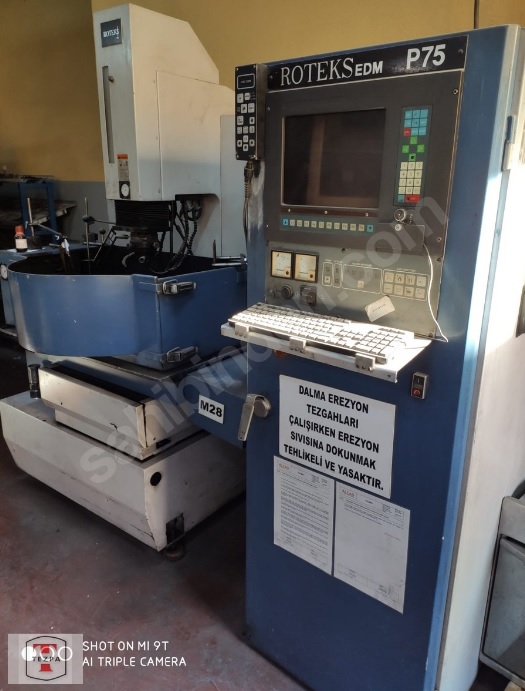

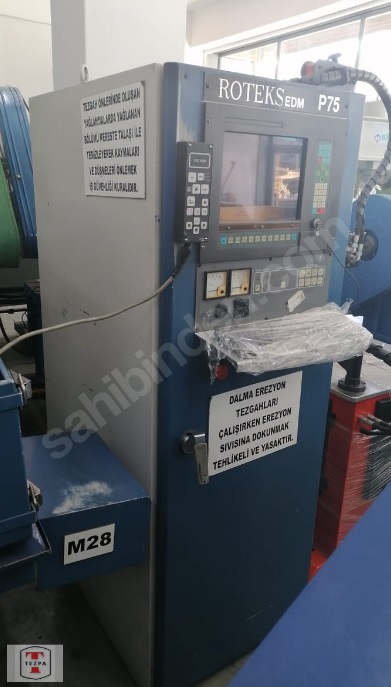

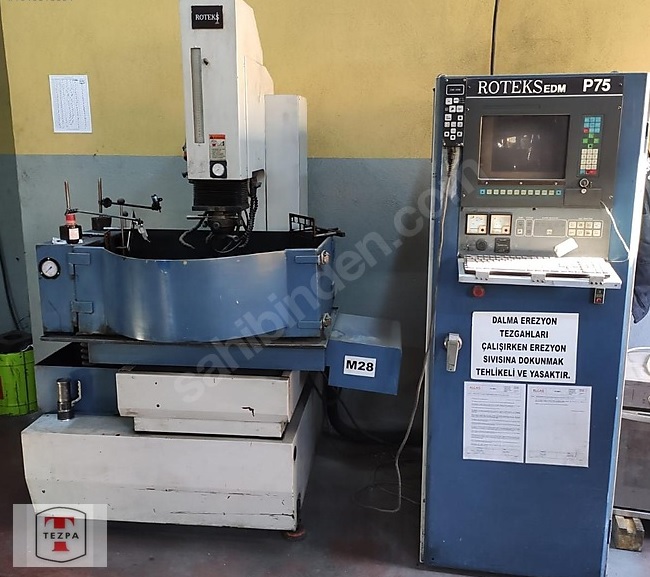

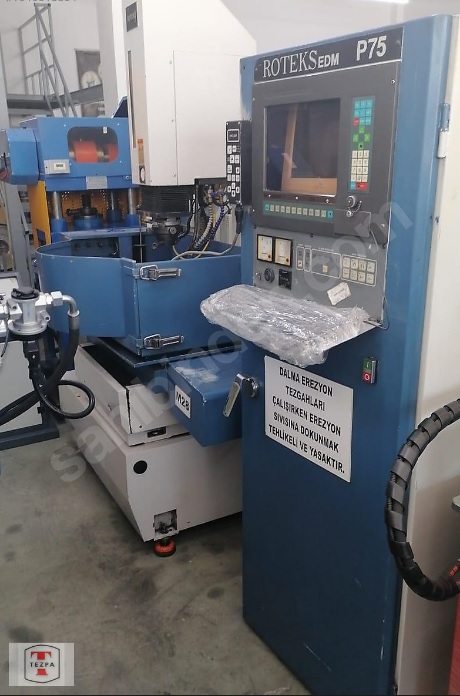

ROTEKS CNC DALMA EREZYON EDM P75
2004 MODEL ÇOK TEMİZ 75 AMPER CNC

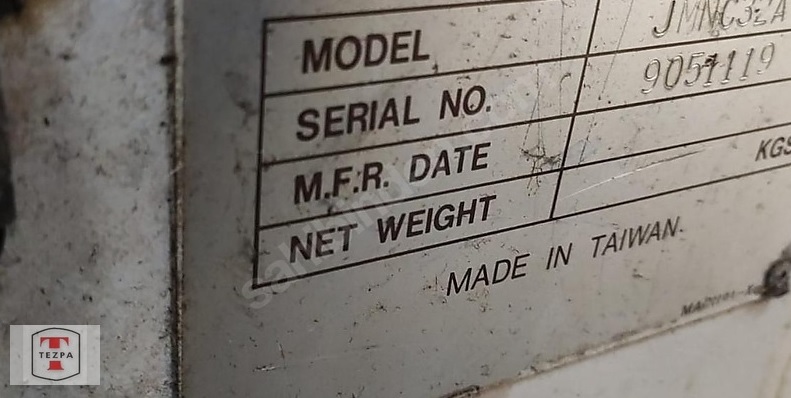

JMNC32A TAIWAN MALI

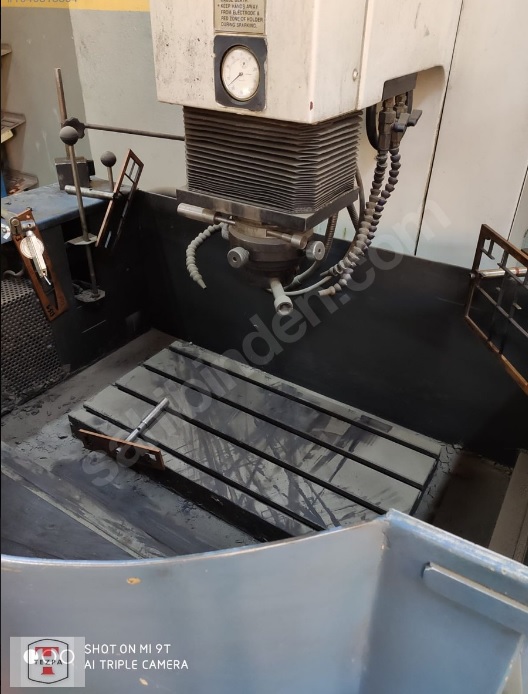

| Work table size | mm | 600 × 300 |
X travel | mm | 300 |
Y travel | mm | 200 |
Z travel | mm | 300 |
Ram platen to work table | mm | 167 ~ 467 |
Max. electrode weight | kgs | 60 |
Max. workpiece weight | kgs | 500 |
Work tank ( W × D × H ) | mm | 845 × 510 × 300 |
Weight of machine unit | kgs | 1150 |
Machine Outside dimensions ( W × D × H ) | mm | 1675 × 1200 × 2075 |
Max. Machining Current | A | 50 |
Total Power Input | KVA | 4.5 / 6.5 ( with JMNC53P ) |
Max. Metal Removal Rate | mm3 / min | 390 |
Electrode Wear Ratio | % | 0.20 |
Best Surface Roughness | µm Ra | 0.20 ( without powder ) < 0.20 ( without powder ) |
Net Weight | kgs | 320 |
Outside Dimensions ( W × D × H ) | mm | 680 × 1070 × 1820 |
Dielectric tank capacity | L | 280 |
Dielectric tank pump | HP | 0.5 HP × 1 |
Dielectric tank net weight kgs | built-in | |
Dielectric tank filter method | Paper filter | |
Dielectric tank outside dimensions ( W × D × H ) | mm |
